How To Find The Area Of A Plane Figure

The area of the portion of the plane or shape can be defined as the amount of stuff required to cover it.

For finding the area of a polygon, we consider the enclosed region of the polygon. Let us consider an illustration to clarify the idea.

A news bulletin board in a class is to be covered with squared colour paper sheets. To know that how many colour paper sheets are required for the said purpose, the best way is to lay the board on the floor and cover it with a coloured paper sheet without any gap as shown in the figure.

Count the number of sheets used for this purpose. Suppose 21 sheets are used to cover the complete board, then, we can measure the region enclosed by a polygon. This measurement is called the area of the polygon.∴ Area = 21 × Area of 1 sheetThe amount of surface enclosed by a plane figure is called its area. It is measured in square units of lengths.

[embedded content]

To find the area of a figure using a graph

We can find the area of regular and irregular figures by using a graph or squared paper. To find the area, first we draw the figure on the graph paper covering as many squares as possible.

For finding the area by using squared paper, we have to follow the following steps:

Count the number of complete squares of unit length enclosed by the figure.
Count the number of those squares whose more than half parts are enclosed by the figure.
Count the number of those squares whose exact half parts are enclosed by the figure and divide the number by 2.
Leave those squares whose less than half parts are enclosed by the figure.
The total of steps (i), (ii), and (iii) are added to obtain the area of the figure.

∴ Area of the figure = Number of complete squares + Number of squares having more than half parts enclosed + 1/2 (Number of squares having half parts enclosed)

Consider the figures given in figure.(i) Area of rectangle ABCD= 8 × Area of one square= 8 × 1 cm2 = 8 cm2Thus, if the length and breadth of a rectangle are 4 cm and 2 cm respectively, thenArea = 8 cm2= (4 × 2) sq cm∴ Area = length × breadth

(ii) Area of ΔPQR = Number of complete square + Number of squares having more than half parts + 1/2 × Number of halved squaresNumber of complete squares enclosed in the figure = 2Number of squares whose more than half parts are enclosed = 4Neglect the number of squares whose less than half part is enclosed.Area of ΔPQR = 2 + 4 + 1/2 × 0= 6 squares= 6 × 1 cm2= 6 cm2Thus, if the base and height of the triangle are 4 cm and 3 cm respectively, thenArea = 6 cm2= 1/2 × 4 × 3= 1/2 × base × height

(iii) Area of square WXYZ= 9 × Area of one square= 9 × 1 cm2= 9 cm2Thus, if the side of the square is 3 cm, thenArea = 9 cm2= (3 × 3) cm2= side × side

(iv) Similarly, area of figure ABCDEFGH= 7 × Area of one square= 7 × 1 cm2= 7 cm2

The Area Of Plane Figures Example Problems with Solutions

Example 1: Find the area of a square whose side is 8 cm.Solution: Area of square= side × side= 8 cm × 8 cm= 64 cm2

Example 2: Find the area of a rectangle whose length is 21 cm and breadth is 5 cm.Solution: Area of a rectangle= length × breadth= 21 cm × 5 cm= 105 cm2

Example 3: The side of a square plot of land is 30 m. Find the cost of levelling the plot, if the rate is Rs 2 per square metre.Solution: Area of square= side × side= 30 m × 30 m= 900 m2Levelling cost of 1 m2= Rs. 2Levelling cost of 900 m2= Rs. (2× 900)= Rs. 1800

Example 4: Find the area of the given figure.Solution: Area of the rectangle DEFG = l × b= 7 cm × 3 cm = 21 cm2Area of the rectangle ABCG  l × b= 7 cm × 3 cm = 21 cm2Area of the complete figure= Area of rectangle DEFG= 21 cm2 + 21 cm2= 42 cm2

Example 5: How many tiles, each measuring 2 m by 1 m, are required to cover a rectangular hall 12 m long and 8 m broad? Find the cost of tiles at Rs. 25 per tile.Solution: Length of a tile = 2 mBreadth of a tile = 1 m∴ Area of each tile = 2 m × 1 m= 2 m2Length of rectangular hall = 12 mBreadth of rectangular hall = 8 m∴ Area of the hall = 12 m × 8 m= 96 m2Hence, number of tiles required= Area of the hail/Area of one tile= 96/2 = 48∴ Cost of tiles 48 × 25= Rs. 1200

Given the figure below, what is the area of the trapezoid, in square...

Given the figure below, what is the area of the trapezoid, in square… – In rectangle ABCD below, is 16 inches long and is 12 inches long. Points E, F, and G are the midpoints of , and respectively. What is the perimeter, in Correct Answer: A. In ΔJKL the measure of ∠J is exactly 37° , and the measure of ∠K is less than or equal to 63°. Which of the following phrases best…Video explanations + diagnosis of 10 weakest areas + one-week access to 10 SC e-books and 200 short videos! In both the triangles, the base is same that is AD. Now the AREA of two triangles will be same if their height is same. Let's see what does the statements tell us..Refer to the figure provided below for clarification. The medians of the triangle are represented by the line segments ma, mb, and mc. For the purposes of this calculator, the inradius is calculated using the area (Area) and semiperimeter (s) of the triangle along with the following formulas

In the figure below, what is the ratio Area of Triangle Area of Triang – Figures should be labeled with a number preceding the table title; tables and figures are numbered More details about some common graph types are provided below. Some good advice regarding the You can also put all the figures and tables at the end of the paper to avoid breaking up the text.Area of the rectangle = 4 × 2 = 8 cm2. We need 8 one-centimetre squares to make a rectangle 4 cm long and 2 cm wide. 5. The figure below is made of Rectangle A and Square B. Find the area and perimeter of the figure.Please analyse observe , nature of figure shaded area , carefully observe which standard areas are to be found modify suitably in relevant way calculate No integrals are necessary, below is what I think is the easiest way to do this. No university math needed. 1/ Calculate the angle between the side of…

In the figure below, what is the ratio Area of Triangle Area of Triang

Triangle Calculator | Area of a Triangle – solve for area1: (a+9)(2a+5). Ceil mixed 3/4 gallon of white paint to 3 2/4 gallon of blue paint. how many gallons of paints were there in all? what is asked? what are the given facts? what operation will you use? what is the number sentence? what is the answer? question: there are 34 raisins in every…Figure captions are generally placed below the figures, while table captions must be placed above the tables. This is because we generally read tables from Overall 50% of students said that they found the Pre-writing stage to be the most challenging, while 28% found the Drafting stage most difficult and…Hint: Break the shaded region up into two shapes. One is a portion of the circle (you know the portion because of the given angle), and the other is a triangle (which is equilateral). Find the area of each shape and then add them.

A rectangle is inscribed with its base on the x axis and ...
Learn how to calculate the area of a square and rectangle ...

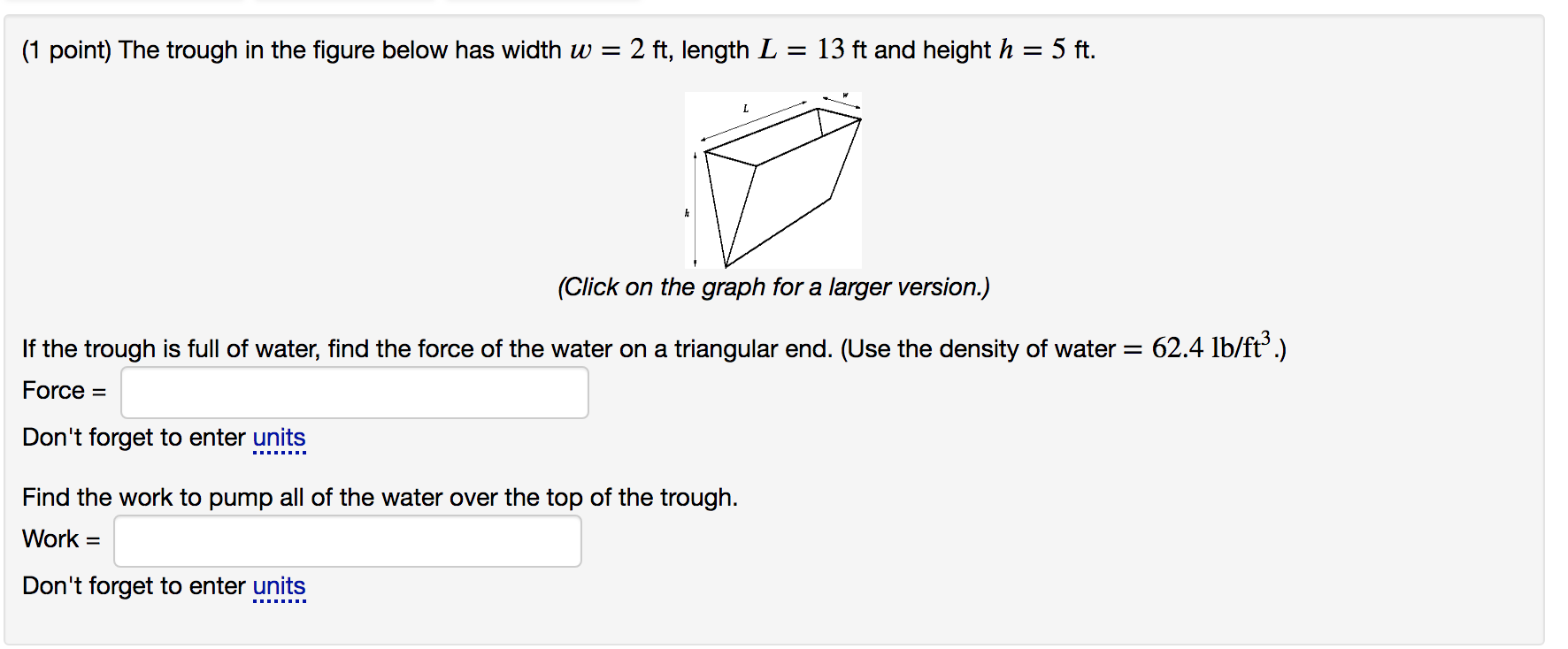

Solved: (1 Point) The Trough In The Figure Below Has Width ...
The figures below are made out of circles, semicircles ...

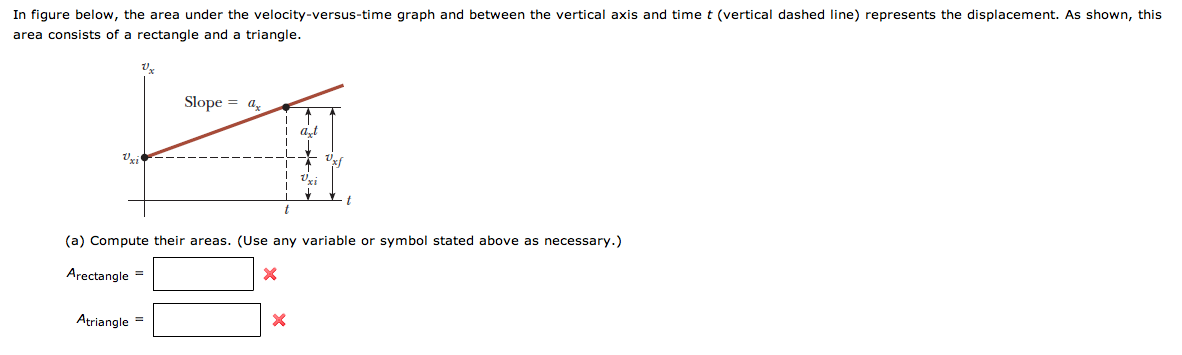

Solved: In Figure Below, The Area Under The Velocity-versu ...
